Description

Pipe outlet fittings are branch connection components used to create reinforced outlets from a main pipe without the need for a full tee fitting. These fittings are widely used in high-pressure and high-temperature piping systems where structural integrity and flow efficiency are critical.

Outlet fittings such as weldolet, sockolet and threadolet are typically manufactured in accordance with MSS SP-97 and ASME piping standards. In engineered piping systems, outlet fittings are often used together with stainless steel pipe fittings and forged steel flanges to form complete branch connection assemblies for industrial piping systems.

These fittings are commonly used in petrochemical plants, offshore platforms, refineries, LNG facilities, power plants and nuclear projects where branch connections must meet strict mechanical strength and inspection requirements.

Specifications / Standards

Pipe outlet fittings are manufactured in accordance with international piping and forging standards to ensure dimensional accuracy, pressure rating compliance and material traceability.

Typical manufacturing and inspection standards include:

MSS SP-97 – Integrally Reinforced Branch Outlet Fittings
ASME B16.11 – Forged Fittings
ASME B31.3 – Process Piping
ASTM A182 – Forged Alloy Steel Pipe Flanges and Fittings
ASTM A105 – Carbon Steel Forgings
ASTM A350 – Low Temperature Forgings
EN 10204 – Inspection Certificates
NACE MR0175 / ISO 15156 – Sour Service Materials

Outlet fittings are frequently supplied together with butt weld fittings and pipe flanges for complete piping system fabrication packages.

Material Grades

Pipe outlet fittings can be manufactured in a wide range of carbon steel, stainless steel, duplex stainless steel and nickel alloy materials depending on service conditions such as corrosion, pressure and temperature.

Common material grades include:

Carbon Steel

ASTM A105
ASTM A350 LF2

Stainless Steel

ASTM A182 F304 / F304L
ASTM A182 F316 / F316L
ASTM A182 F321
ASTM A182 F347

Duplex & Super Duplex

ASTM A182 F51 (S31803)
ASTM A182 F53 (S32750)
ASTM A182 F55 (S32760)

Nickel Alloys

Alloy 625 (UNS N06625)
Alloy 825 (UNS N08825)
Alloy C276 (UNS N10276)

Material selection is typically determined by piping class specifications and corrosion allowance requirements.

Size Range

Typical size range for pipe outlet fittings:

Run Pipe Size: 1/2″ to 48″
Branch Size: 1/2″ to 24″
Pressure Rating: Class 3000 / 6000 / 9000

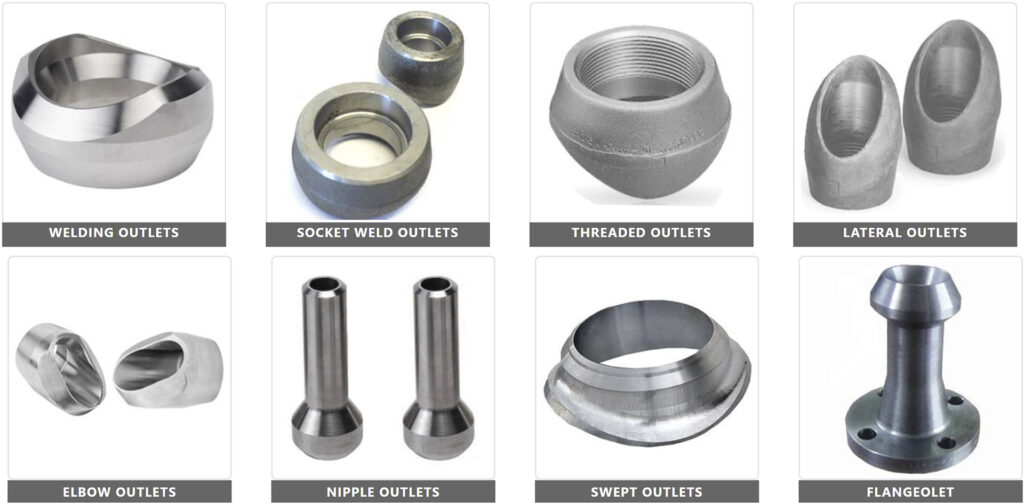

Types:

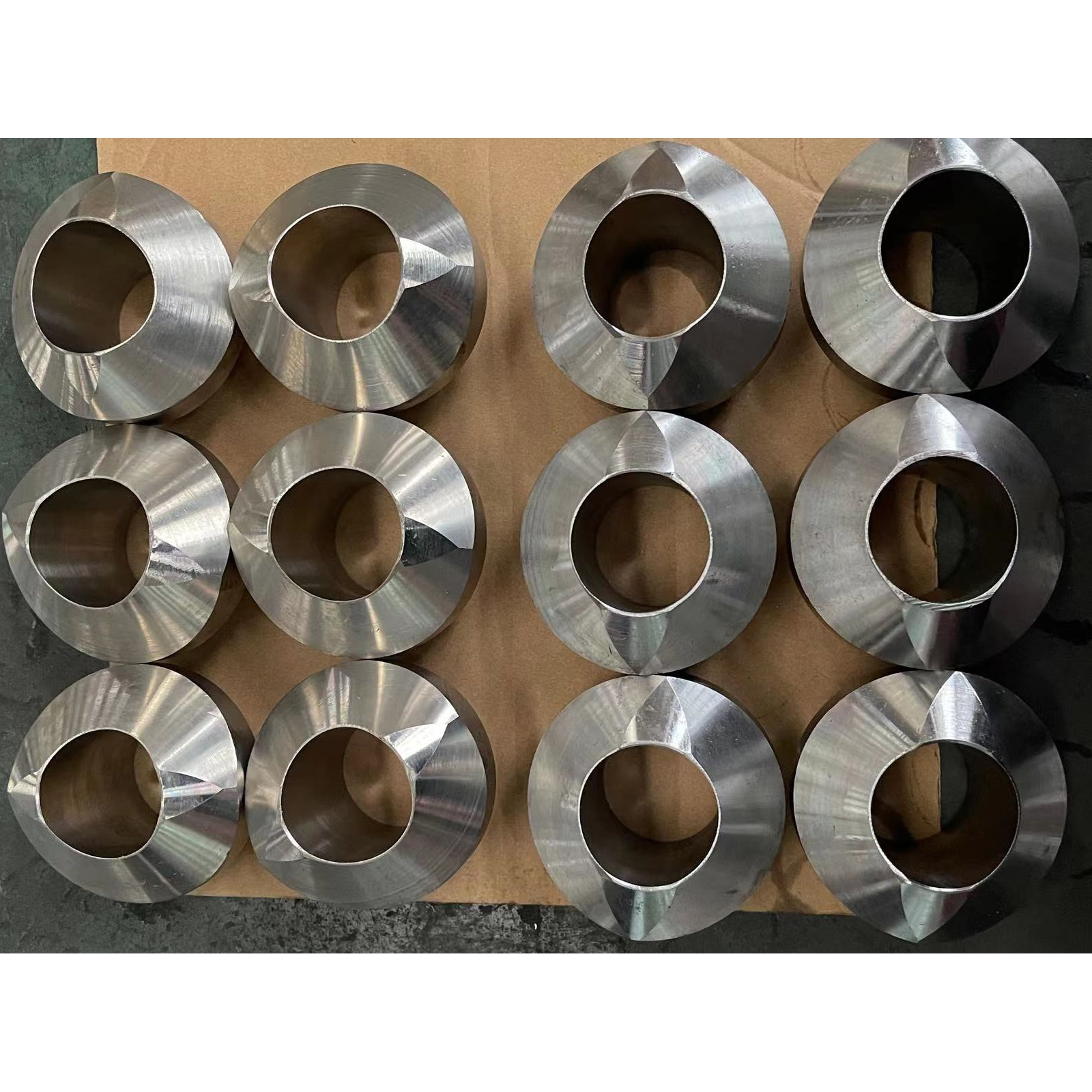

Weldolet
Sockolet
Threadolet
Elbolet
Latrolet
Nipolet
Sweepolet
Flexolet

Special sizes and non-standard outlet fittings can be manufactured according to project drawings and piping isometrics.

Manufacturing Process

The typical manufacturing process for pipe outlet fittings includes:

Raw material forging
Heat treatment (Normalizing / Solution Annealing / Quenching & Tempering)
Rough machining
Finish machining
Bevel machining
Thread or socket machining
Surface treatment (Pickling / Passivation / Shot blasting)

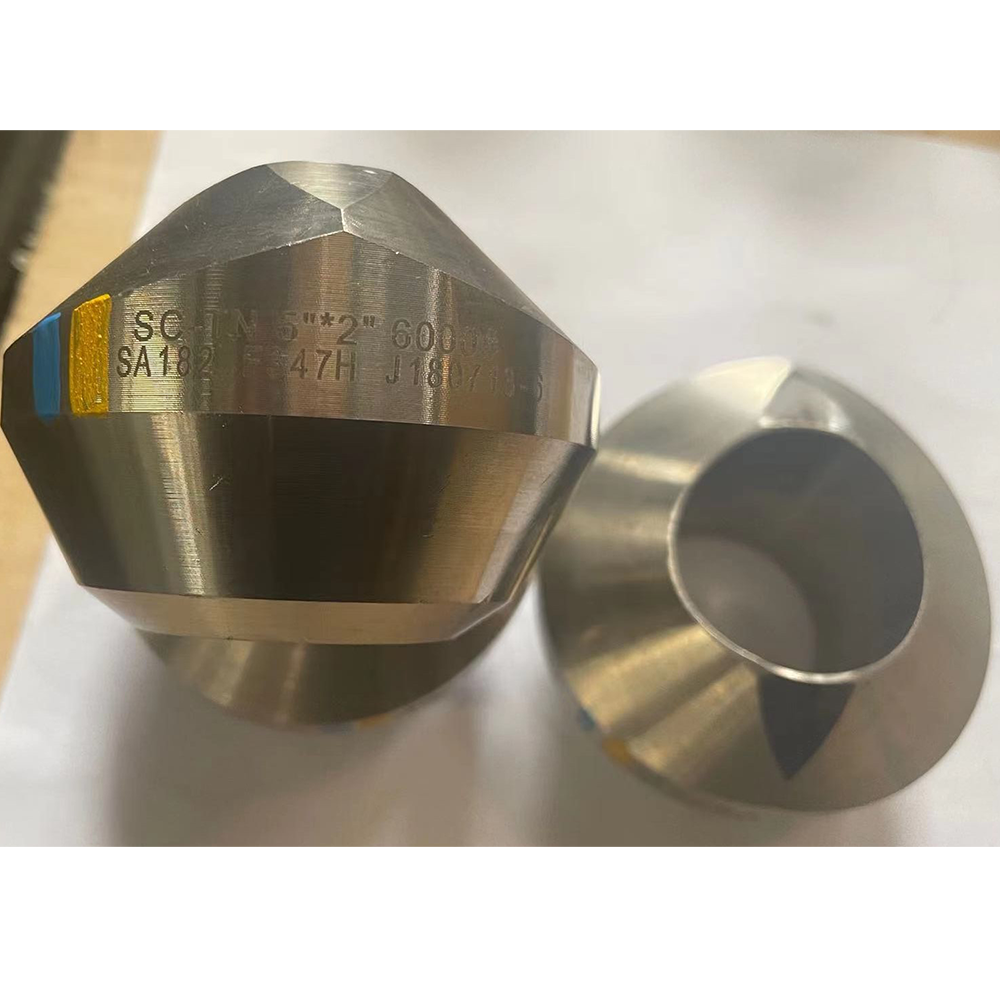

Marking and traceability identification
Inspection and testing
Packaging and shipment

All outlet fittings are fully traceable from raw material heat number to final inspection documentation.

Inspection & Testing

Inspection and testing may include:

Visual inspection
Dimensional inspection
PMI (Positive Material Identification)
Mechanical testing
Hardness testing
NDT (UT / MT / PT)
Hydrostatic testing (if required)
Corrosion testing (if required)
Third-party inspection (SGS / BV / TUV / DNV)

Inspection certificates can be supplied according to EN 10204 3.1 or 3.2 requirements.

Applications / Industries

Pipe outlet fittings are widely used in industrial piping systems requiring reinforced branch connections.

Typical industries include:

Oil & Gas
Petrochemical
Offshore & FPSO
LNG & Gas Processing
Power Plants
Nuclear Industry
Chemical Plants
Desalination Plants
Heavy Industry
Shipbuilding

Outlet fittings are commonly used in high-pressure piping, instrument take-off connections, drain connections and branch process lines.

Packaging & Delivery

Pipe outlet fittings are packed to prevent damage during transportation and storage.

Typical packing methods include:

Wooden cases
Plywood boxes
Pallets
Waterproof wrapping
End protection
Heat number marking
Packing list and traceability documents

Export packing is suitable for sea freight, air freight and project site delivery.
