PREFABRICATION SPOOLS
- PRODUCT DETAIL
Pipe Fabrication Spools
Description
Pipe fabrication spools are prefabricated piping sections manufactured according to isometric drawings and project specifications for EPC piping systems and industrial projects. Fabrication spools are used to reduce site welding, improve installation efficiency and ensure welding quality and dimensional accuracy.
As an Alloy materials supplier, we supply pipe fabrication spools manufactured from stainless steel, duplex stainless steel and nickel alloy materials for EPC piping systems and industrial projects.
Specifications / Standards
Pipe fabrication spools are manufactured according to international piping standards and project specifications.
Typical standards include:
ASME B31.3 – Process Piping
ASME Section IX – Welding Qualifications
ASME Section V – NDT Testing
ASTM / ASME material standards
EN standards where applicable
NACE MR0175 / ISO 15156 where required
Project specifications, drawings and isometric drawings
Fabrication, welding, testing and documentation are performed according to project requirements.
Material Grades
Pipe fabrication spools can be manufactured using various materials including:
Austenitic stainless steel (TP304, TP304L, TP316, TP316L, TP321, TP347)
Duplex stainless steel (S31803, S32205)
Super duplex stainless steel (S32750, S32760)
Nickel alloys (Inconel 600, 625, Incoloy 825, Hastelloy C276)
Carbon steel and alloy steel where required
Material selection depends on project specifications and service conditions.
Size Range
Pipe fabrication spools can be manufactured in various sizes including:
Pipe sizes from 1/2” to 48”
Various wall thickness according to ASME standards
Fabrication spools according to isometric drawings
Prefabricated pipe sections with fittings, flanges and valves
Shop fabricated piping assemblies
Fabrication dimensions and configuration are based on project drawings.
Manufacturing Process
Pipe spool fabrication typically includes:
Material cutting
Pipe beveling
Fit-up and alignment
Welding (GTAW, SMAW, SAW)
Heat treatment where required
NDT testing
Dimensional inspection
Surface cleaning and marking
Documentation preparation
Fabrication is carried out according to welding procedures, inspection plans and project specifications.
Inspection & Testing
Inspection and testing may include:
Visual inspection
Dimensional inspection
Radiographic testing (RT)
Ultrasonic testing (UT)
Dye penetrant testing (PT)
PMI testing
Hydrostatic testing
Welding procedure qualification
Third-party inspection
All fabrication spools can be supplied with quality control and inspection documentation including inspection reports, welding records and material certificates.
Applications / Industries
Pipe fabrication spools are widely used as piping materials for industrial projects including:
Oil and gas projects
Petrochemical plants
Offshore platforms
Power plants
Refineries
Chemical plants
Industrial piping systems
EPC construction projects
Prefabricated piping spools improve installation efficiency and reduce field welding work.
Packaging & Delivery
Fabricated pipe spools are packed according to project and transportation requirements.
Typical packaging includes:
Steel frames
Wooden crates
Protective wrapping
Marking according to spool numbers and drawings
Export seaworthy packing
Delivery can be arranged according to project schedule and shipping requirements.
Why Choose Us
We supply pipe fabrication spools for EPC and industrial projects worldwide.
Our services include:
Material supply and piping fabrication
Shop fabrication and welding
Inspection and documentation support
Third-party inspection coordination
Project material supply coordination
Spool numbering and documentation
Project delivery support
We support customers not only as a material supplier, but as a supply chain partner supporting industrial piping projects from material sourcing to final installation.

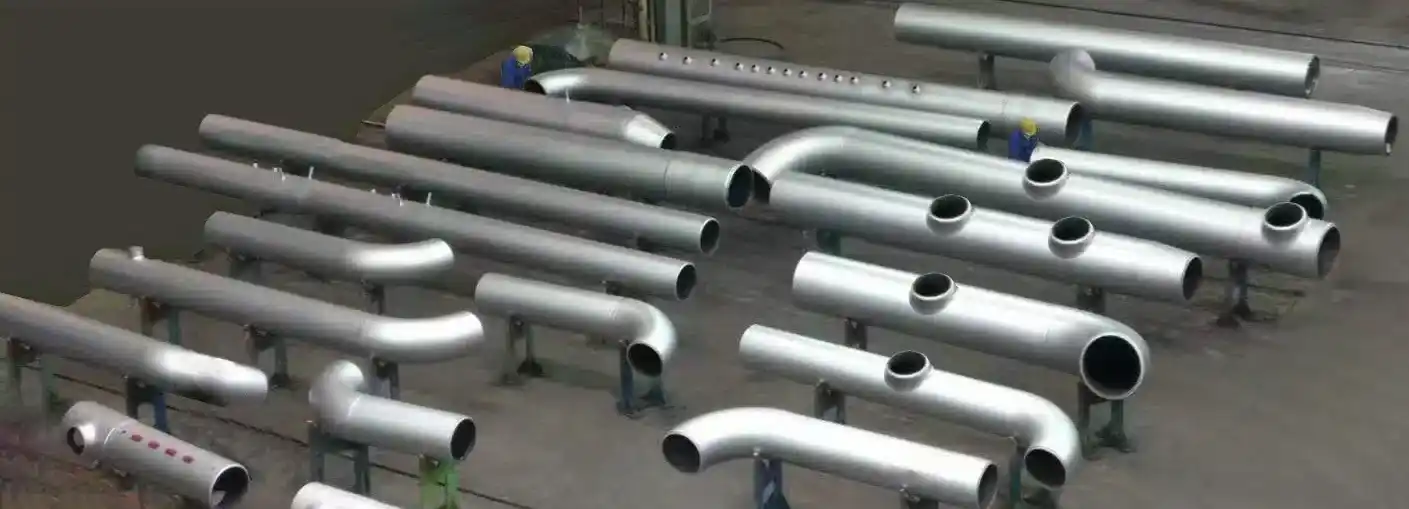

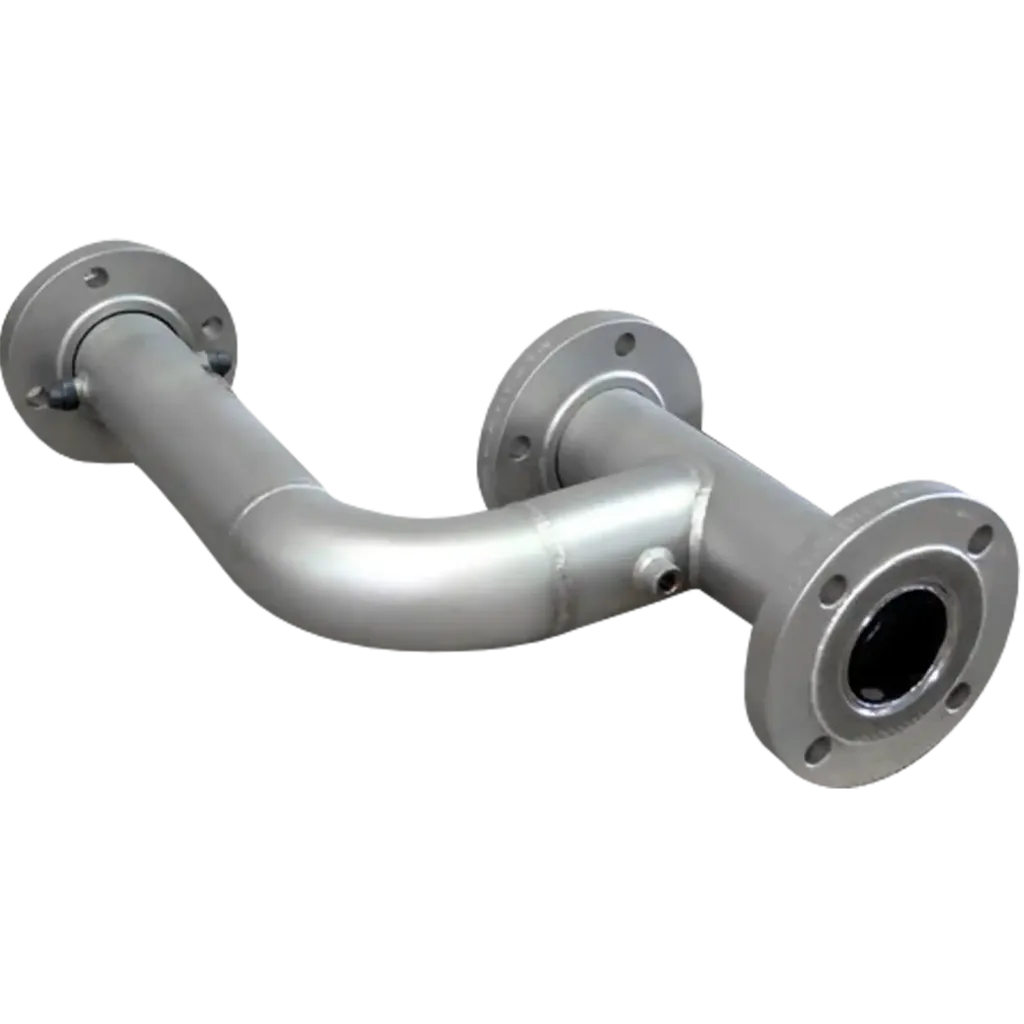

WORKSHOP PREFABRICATION SPOOL SAMPLES
